Intuitive Sampling Module
+12V | 400mA |
---|---|
-12V | 0mA |
+5V | 0mA |
Width | 26HP |
Depth | 26mm |

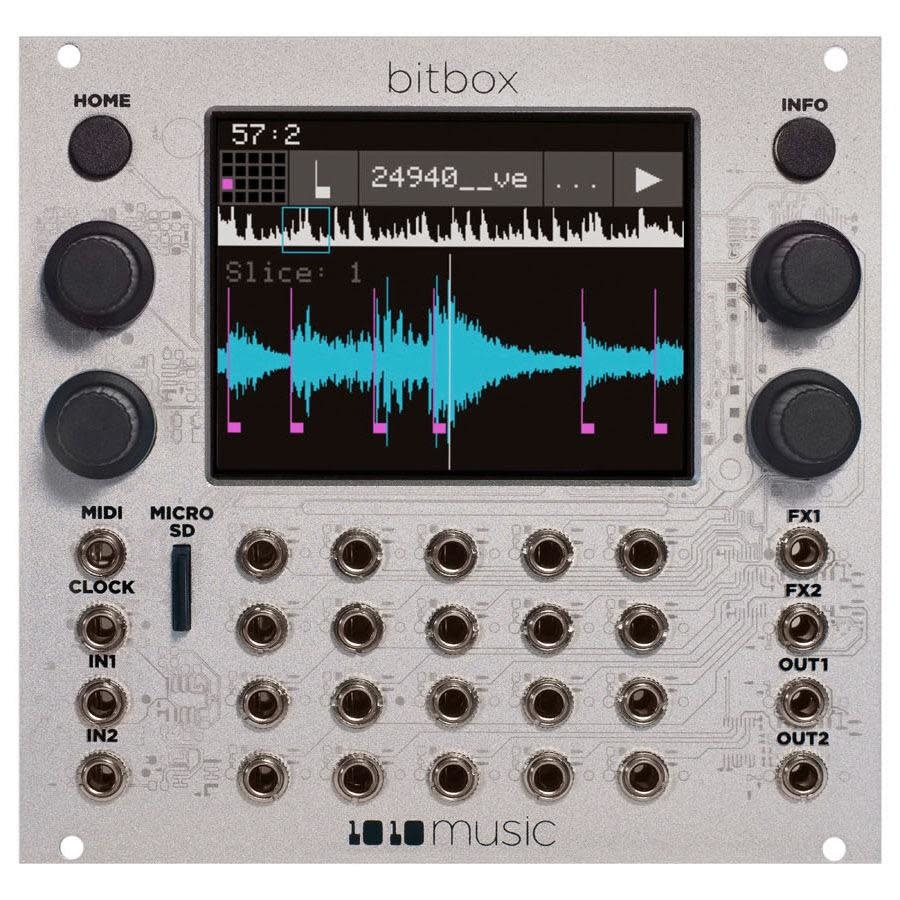

Bitbox mk2 delivers powerful sampling and mangling for Eurorack. With this module you can add recording, sample playback, clip launching, slicing, granular sounds and musically intelligent looping capabilities to your Eurorack rig. With a 3.5 inch touchscreen, bitbox mk2 makes easy work of selecting, editing, and tweaking your samples. You can stream large samples of up to 4 GB file size straight from the microSD card. Interact with other musical components via CV and MIDI. Tweak your configurations to get them just right, then save them to multiple presets for future reuse. With the new bitbox mk2 hardware, you can now do more with the new more powerful processor.
Features
• Play up to 24 polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger samples streaming directly from the microSD card
• Configure 16 sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
• Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
• Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping
• Record Eurorack level audio straight into the module
• Find creative ways of using your samples with our 5 sample playback modes: 1 shot, sample mode, clip mode, slicer mode & granular mode
• Connect up to 8 CV modulators to control numerous sample parameters
• Trigger each of the 16 pads with a dedicated gate input
• Select Flipped UI mode to mount the unit with the screen on the bottom and use the screen, knobs, buttons, and CV jacks as you normally would
• Get more creative with double the processing power of the original bitbox
In the Box
• bitbox mk2 module
• eurorack Power Cable
• a microSD card with with a bank of presets and samples loaded on it
• a bitbox Quick Start guide
• a MIDI Adapter
