A Multi FX Module Based on Game Carts!
+12V | 140mA |
---|---|
-12V | 120mA |
+5V | 0mA |
Width | 12HP |
Depth | mm |

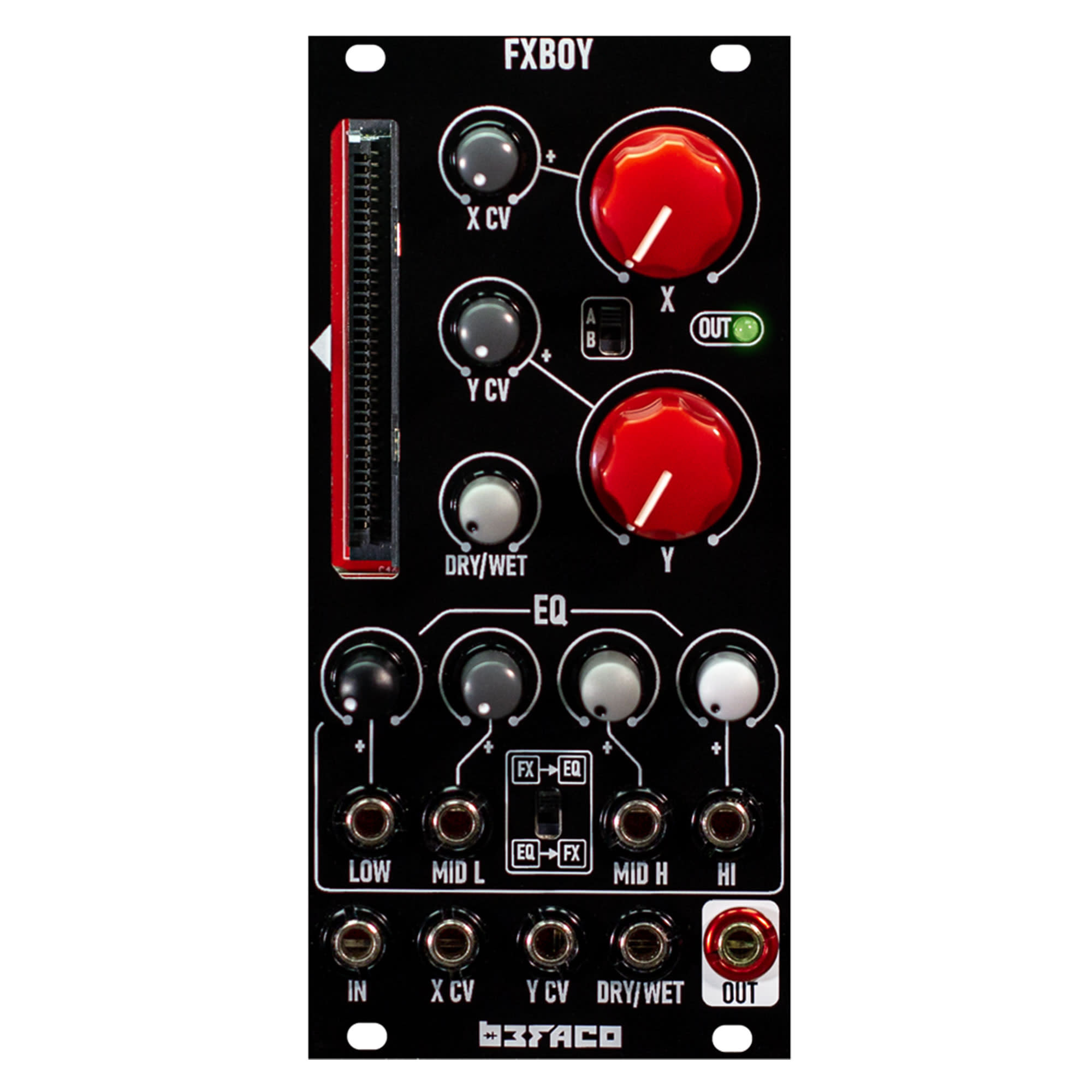

FX Boy is a multi-FX module designed in collaboration with several talented manufacturers.
This is an effect unit with CV control over the parameters and Dry/wet control, with a Built-in CV controllable four bands EQ.
Each effect is physically hosted in a hot-swappable game cart and designed by a different manufacturer: Touell Skouarn with Skuara a harsh fuzz with overdrive, Instruo with micro Phaser, a two-flavoured Phaser, Feedback modules with a vintage Flanger, XOR with FX-Girl, a digital double effect module: Delay + Granularizer, Making sound machines with an analog Wave folder, Tesseract with a bit crusher and Befaco Trash distortion!
Trash is a harmonic distortion that combines both clipping and folding flavours. Modes A and B will select between aggressive and more aggressive flavours!
We are updating this area as content comes in.
Making Sound Machines’ Analog Wavefolder cartridge is a classic West Coast Synthesis circuit, designed to add harmonically related overtones. This cartridge is excellent at adding rich harmonics to a basic waveform, and cool distortion to complex signals like drum sounds. Its circuit can produce characteristic timbres similar to pulse-width and frequency modulation.
AVMA by Tesseract Modular it’s a bipolar VCA with one switchable wavefolder stage followed by an analog frequency reducer. The VCA gain is x2, it can be used with ±5V oscillator signals at the CV input for ring modulation effect.
Three cascaded all-pass filters, a built-in LFO and a saturator in the feedback path. The purpose for this cartridge is to completely f&%k your phase up! Instruō – We make sounds with the things that we make to make sounds with.
Eskuara is a feedback fuzz/overdrive circuit, created to distort and make noise.
The cartridge combines fuzzes and overdrive while incorporating feedback control for added experimentation and allows musicians to create a wide range of distorted and saturated tones, with the added ability to manipulate sustain and feedback for unique sonic textures.
