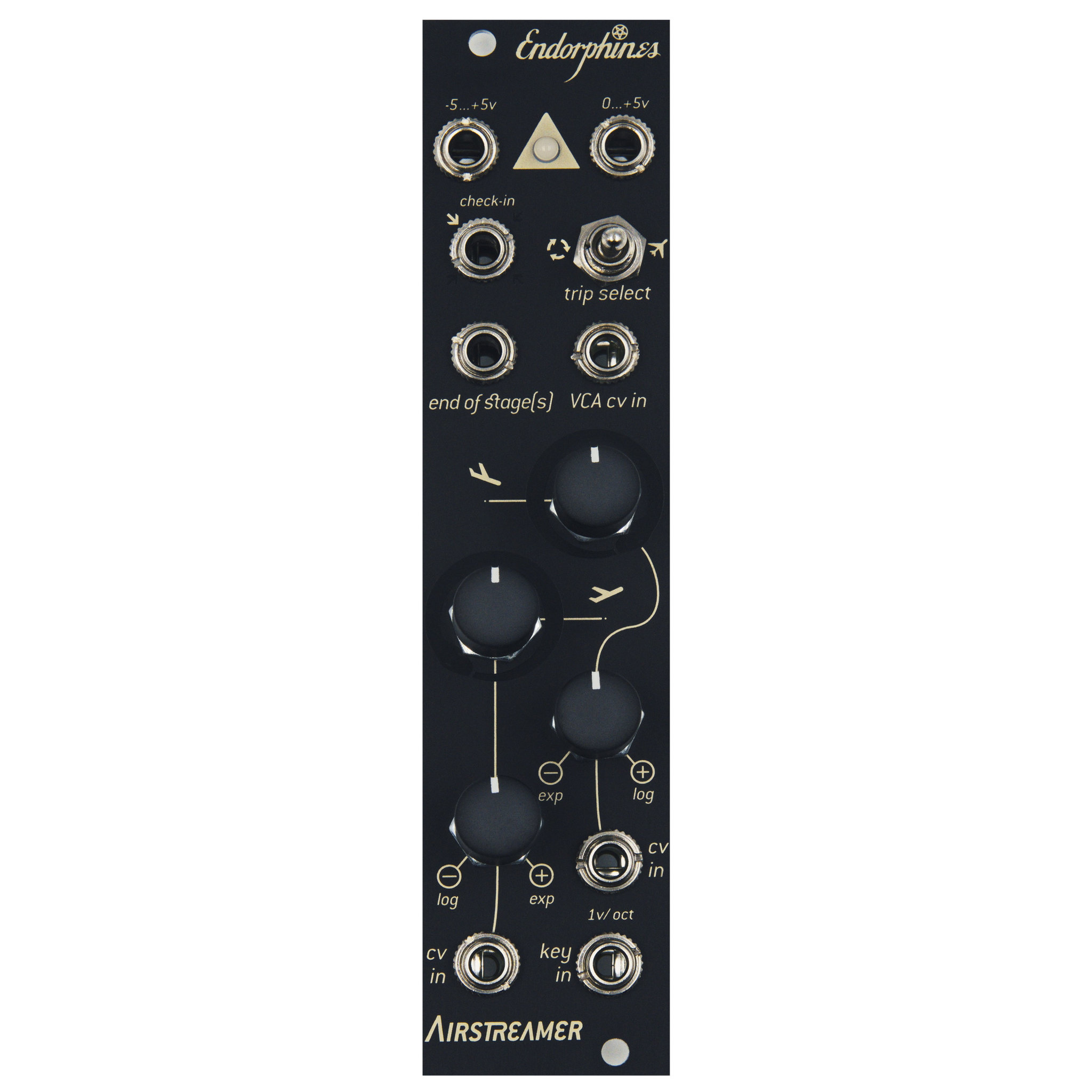

AD / ASR function generator
- Fast and effective 6hp envelope generator with variable slope curves and three modes: looping, attack-sustain-release (ASR) and attack-decay (AD)
- CV control over rise (attack) and fall (decay/release) duration
- Continuously variable shape over rise and fall slopes (from expo to linear to log) without stretching the slopes duration in time
- 224 kHz samplerate, zero aliasing CV generation
- 1v/oct input, bipolar and unipolar outputs, selectable end of cycle outputs
- Thru-zero VCA input that inverts the envelope when CV goes to negative voltages
- Can act as an audio rate oscillator with 1v/oct tracking
- Slew limiter, S&H, T&H
