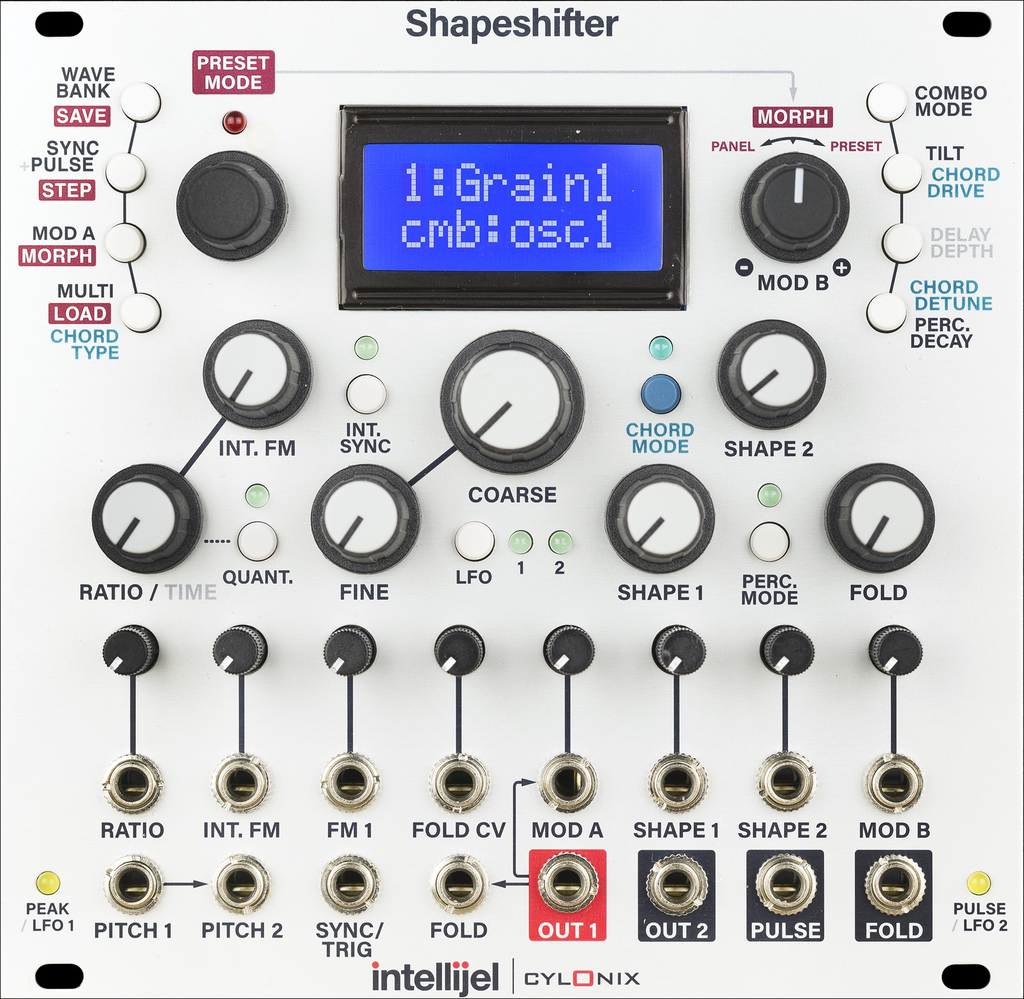

Dual Complex Morphable Wavetable VCO

Cylonix and Intellijel have collaborated to bring you a very sophisticated and deeply complex Wavetable VCO. At the core of this module is very powerful FPGA board that he has pushed to the absolute max of its capabilities and crammed full of features. They wanted to create a module that really worked well in the modular context so there are a lot of modulation and control possibilities.

The wavetables consists of 128 banks, each with 8 individual 512-sample waveforms, for a total of 1024 waves. The choice of waveform within the currently selected bank is under voltage control. There is smooth interpolation between the waveforms within a bank, allowing a very wide range of different possible waveshapes. Oscillator 1 can be oper- ated in a CHORD mode, which runs 8 copies of the oscillator in parallel with adjustable detuning, leading to very fat, rich waveforms. The oscillators have extensive modulation capabilities including audio rate (98KHz) Frequency and Phase Modulation (FM and PM) via external sources. Nonlinear combination processes allow the outputs of the two oscillators to interact to generate complex timbres and sonic textures. The SHAPESHIFTER module also includes the analog wave folder circuitry from the intellijel uFold II module to add analog warmth and metallic rasps to the digital output.

Features
• Preset sequencing and morphing
• Extremely high resolution TZFM
• Delay based resonator
• 64 band vocoder mode
• Special audiorate modulation modes (MOD A)
• Analog wavefolder
• Extensive sync, pulse and modB options
• Detuneable 8 note chords and tons more

Included
• The module itself
• Eurorack Power Cable
