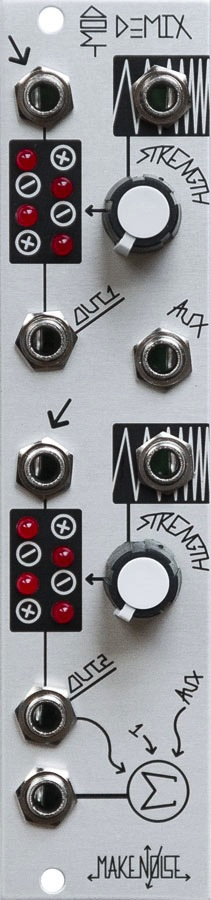

Make Noise

modDemix

$140.00
Out of stock
Product number: CV1402



Dual VCA/Ring Modulation

  • +12V 30mA
    -12V 30mA
    +5V 0mA
    Width 6HP
    Depth 24mm

Description

Dual VCA/Ring Modulation

The modDemix features 2 identical direct-coupled balanced modulator circuits that may be used together or independently for Ring Modulation, VCA, Mixer, Signal Multiplication, Voltage Controlled Polarization, Attenuation and more.

Features
• Unique balanced modulator circuit turns OFF around zero volts at the Carrier/ Control INput, making the circuit behave well as a VCA
• STRENGTH is a Combo Knob, with nothing patched to STRENGTH CV IN, it works as a standard panel control setting level, with signal patched to STRENGTH CV IN, it works as an attenuator, setting the strength of the modulation
• Both circuits feed a summing stage, allowing the module to be used as a voltage controlled mixer
• AUXiliary IN allows for the stacking of multiple modDemix and/ or Optomix to create larger mixes
• Able to introduce warm distortions to audio signals, sounds like no other VCA or Ring Mod

Inputs
• Signal (Channel 1 & 2)
• Carrier In (Channel 1 & 2)
• Aux In

Outputs
• Audio Out (Channel 1 & 2)
• Summed Audio Out

Controls
• Strength (Channel 1 & 2)

In the Box
• The module itself
• Eurorack Power Cable
