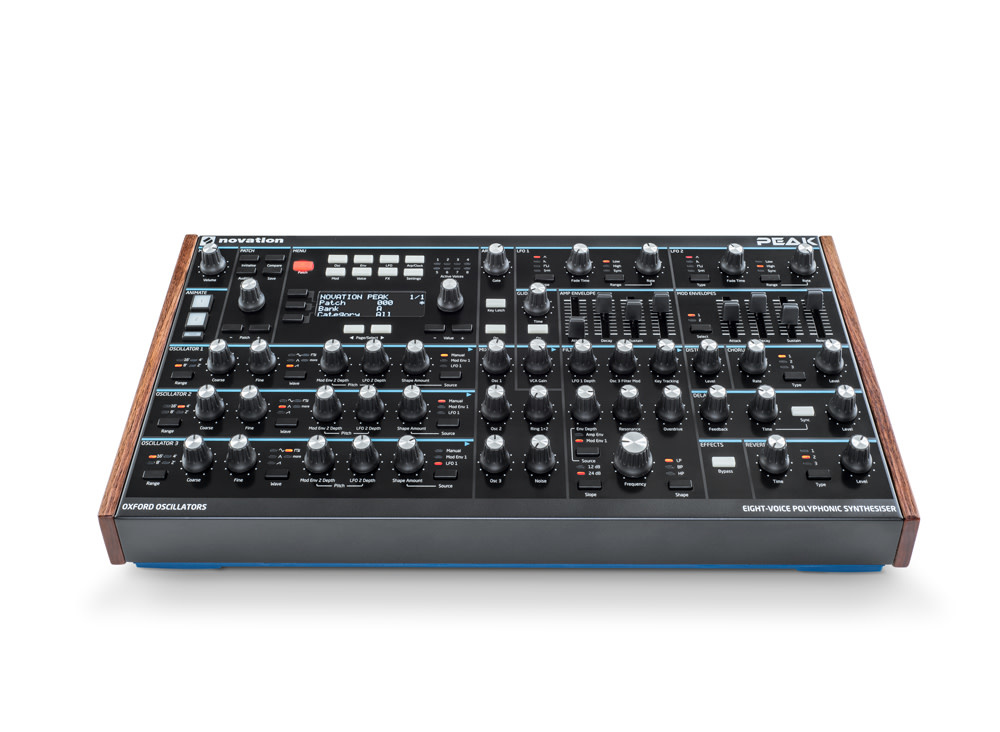

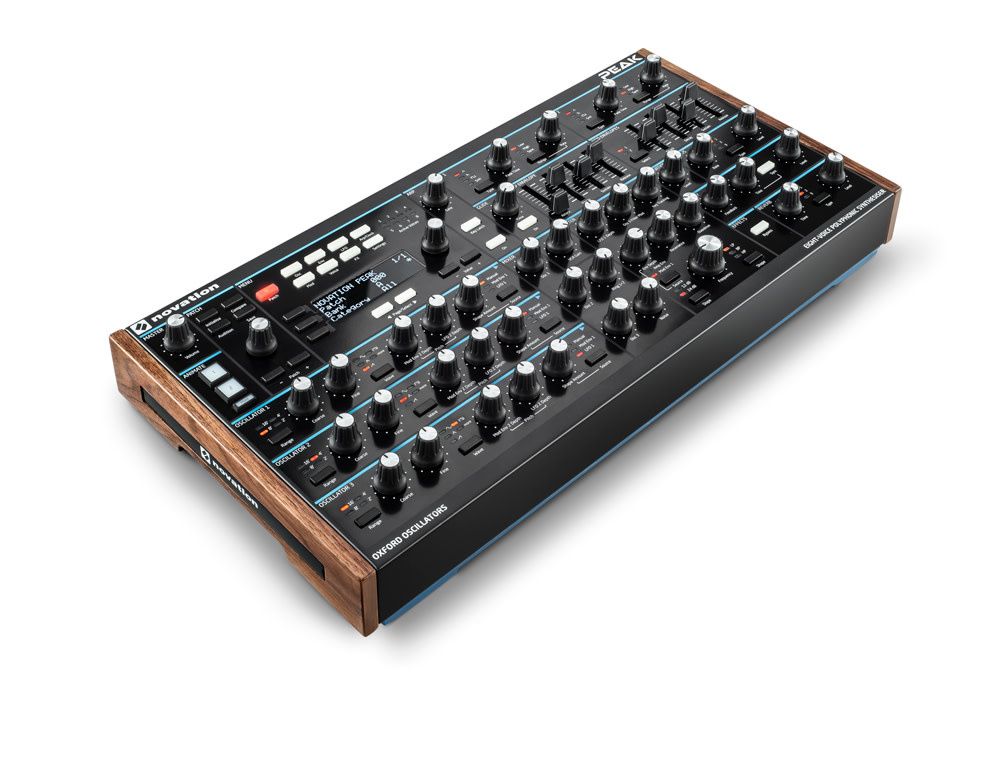

8-Voice Polyphonic Synthesizer

Peak sounds warm and rich with filthy, biting overdrive. It's an eight-voice desktop polyphonic synthesizer with three New Oxford Oscillators for each voice. The synth has a resonant multi-mode analogue filter for each voice, and three distortion points in an analogue signal chain.

Broaden out your electronic music, draw in new influences and take artistic risks. The modulation system puts the most frequently used assignments right at your fingertips in the main controls. More elaborate movements and secondary ‘via' assignments are made just a few menu button presses away.

The three New Oxford Oscillators for each voice can become a linear FM source using either the analogue-sounding NCOs (Numerically-Controlled Oscillators) or digital wavetables. They are also able to cross-modulate in a recursive loop.

Also check out the Sound Collective!

Firmware Update v2.0 Updates

• Stereo New spread modes, panning per voice, and panning in the mod matrix give additional control and allows for sound design in the stereo field. Now you can create bigger, wider, and more intricately textured soundscapes.
• Modulation and unpredictability Create deeper and more experimental sounds with new mod destinations, noise as a mod source, and additional LFO 3 and 4 parameters. Animate Envelopes and Arpeggiator Chance open more creative performance possibilities.
• Effects New effects, including Chorus Modes, Flanger, and Phlanger add new tonalities. Additional effects modulation destinations open up more experimental sound design. A new Lo-Fi delay mode enables a more vintage style sound.

Features
• 8 voice polyphonic (voice modes available unison etc.)
• Mono-Timbral
• 5 Voice Modes - Mono, MonoLG, Mono2, Poly, Poly2
• Per Voice: 3 oscillators, 1 noise generator, 1 ring modulator, 2 lfo's
• Sine, tri, sawtooth, square / pulse plus 17 wavetables of 5 waveforms per row
• 1x State variable OTA 12/24dB slope filter per voice
• Low-pass / band-pass / high-pass
• 16 modulation slots per patch
• Each slot has 2 sources to 1 destination
• 42 Control knobs, 8-35mm Sliders, 1 Volume Knob, 2 Data Encoders
• 30 Function buttons (not lit), 16 Function buttons (lit), 2 Animate buttons plus hold button
• Analogue distortion
• Chorus - 3 types
• Delay with 16 types of delay sync, LP and HP damping, slew and stereo
• Reverb - 3 types
• Arpeggiator w/ key latch - 33 patterns
• Patch storage - up to 512 on hardware (ships with 256 factory patches)
• All knobs (excl. volume), sliders and most buttons transmit and receive MIDI cc commands for external control and mapping
• Ableton Live Lite 9 is included

IN/OUT
• USB socket for system / MIDI comms only (no bus-power)
• MIDI In / Out / Thru
• 2 1/4" jack socket for continuous or switched pedals
• 3.5mm jack socket for CV in
• 1/4" jack sockets for left and right outputs
• 1/4" jack socket for headphone output

Physical Specifications
• Weight: 12 lbs
• 233mm (9.17") width x 464mm (18.27") depth x 70.5mm (2.78") height

Electrical Specifications
• Power: Maximum power consumption 12V DC 1A

In the Box
• The synth itself
• Power Supply, USB Cable

*3-Year Warranty Included with Novation
