The 8-track sequencer & interface for your eurorack system. Perfect for composition and live performances.

Core player

● Number of tracks: 8
● Number of sequences: 8
● Number of projects: unlimited
● Number of events (notes, automation) per project: ~40000
● Track length: 1/4 bar to 16 bars
● Recording resolution: 24ppqn
● Tempo: 40 to 250 BPM

Tracks

● Maximum number of notes per step (polyphony): 8
● Maximum number of effects per track: 8
● Note pitch: C0 to B9
● Note velocity: 0 to 127
● Note width: 1/24th to 16 bars
● Zoom: x1 (1 step = 1 quarter notes) to x8 (1 step = 1/32th note)

Inputs

● MIDI (to control Hermod with a MIDI controller)
● USB host (to control Hermod with a computer)
● USB device (to control Hermod with an USB controller)
● 4x CV in [-5V to +5V] (to control Hermod with CV/GATE notes, CV modulation, clock)

Outputs

● MIDI (up to 8 channels)
● USB host
● USB device
● 8x CV out [-5V to +5V]
● 8x GATE out [0V to +5V]

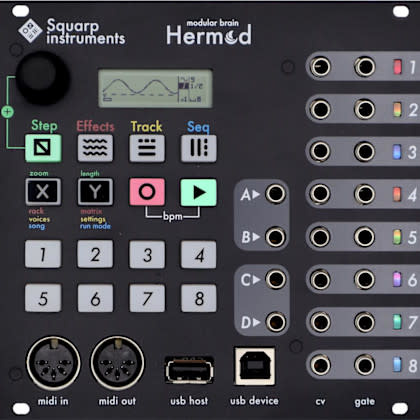

User interface

● 16 backlit silicon button pads
● Menu clickable encoder
● White backlit high contrast LCD screen
● 8x RGB LEDS to display the CV/GATE voltages
● MicroSD card slot to save your projects and upgrade the OS (SD card included)

Other

● CPU: 216MHz ARM Cortex-M7
● DAC resolution: 16-bit
● ADC resolution: 12-bit
● Width: 26HP (up to 30mm in depth)
● Requires a ±12V eurorack supply (consume 310mA from the +12V rail and 30mA from the -12V rail)

Hermod is engineered in Paris and assembled in France.
