+12V | 42mA |
---|---|
-12V | 35mA |
+5V | 0mA |
Width | 26HP |
Depth | 40mm |

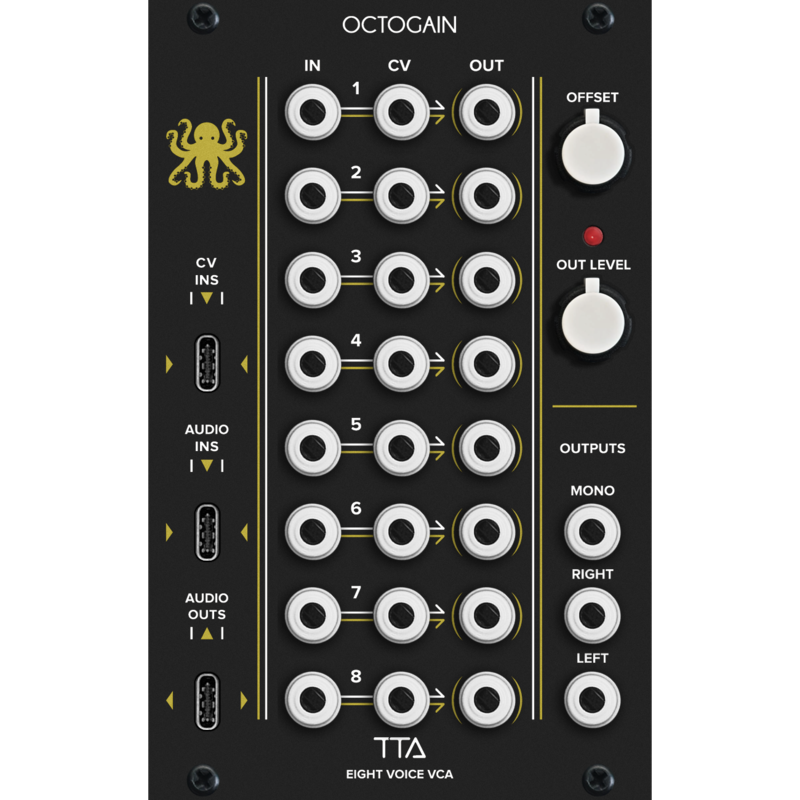

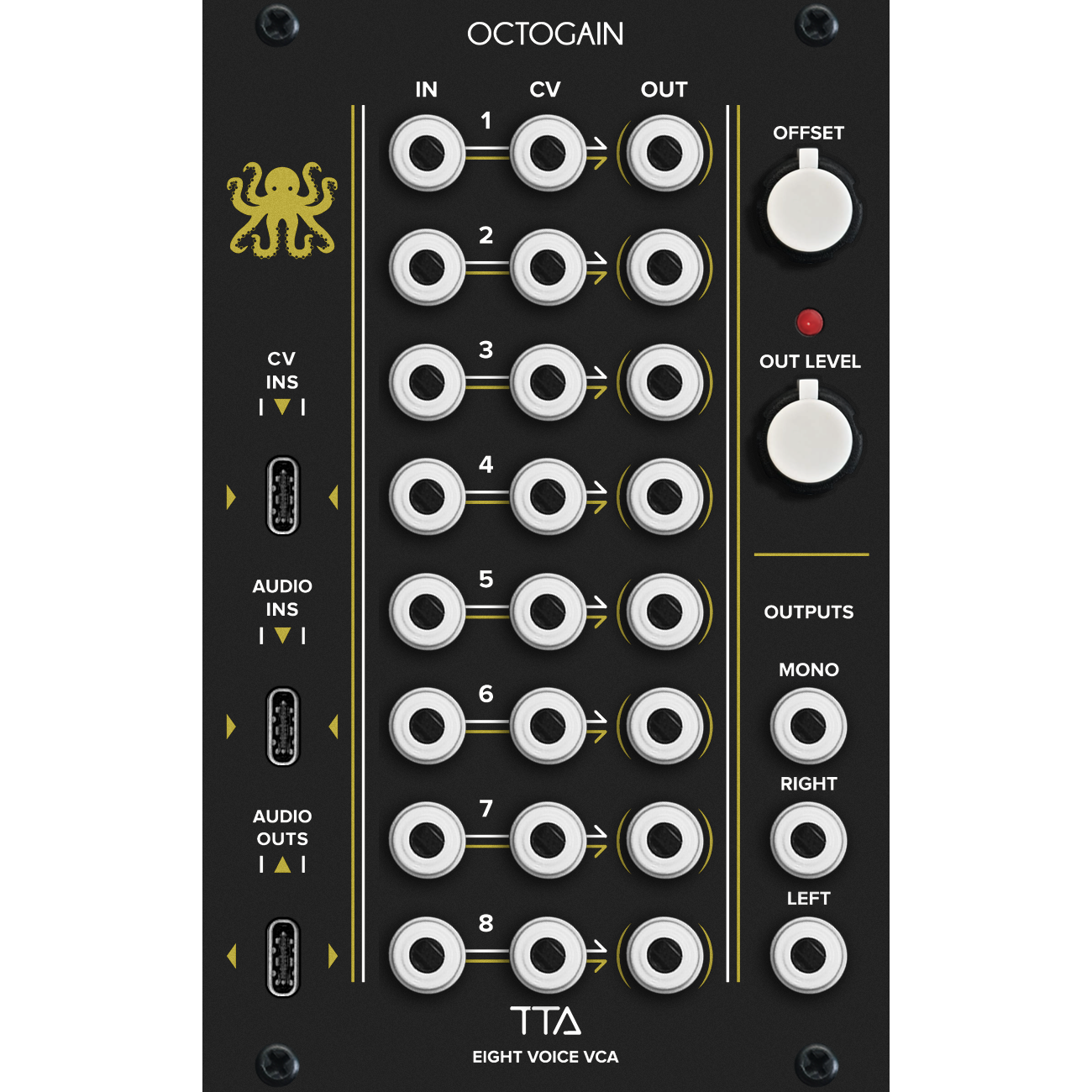

Octogain is an eight-voice analog polyphonic Voltage Controlled Amplifier (VCA) and mixer. It’s equipped with both polyphonic CV/audio jacks and 3.5mm jacks. The polyphonic jacks are patched with Polytip patch cables.
Octogain has eight analog audio VCAs (audio only) and three mixers to sum them to the three possible output configurations. The voices have excellent separation between them, allowing them to be used for independent signal chains if needed. The module can be used as an end-of-the-chain using the mix outputs or inline using the VCAs' direct outs. The Right and Left outputs are great for stereo spread.
Voice matching on this module is considered somewhere between medium and high, maintaining a natural variation between the voices of an analog polyphonic synthesizer.
A note about the polyphonic jacks: these jacks are designed to patch using Polytip cables between polyphonic modules only. Do not plug any USB device into the polyphonic jacks as in some cases damage may occur if the USB device is not properly designed.
